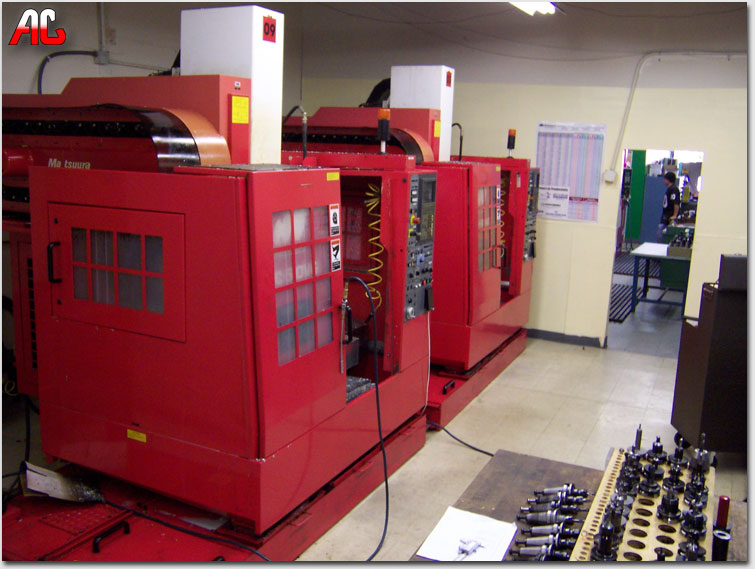

MC-510 VG has a shuttle type 2 pallet changer with pallet change time
on only 9 seconds and clamping force of 3525 lbf.
Movement and ranges:
X-axis travel : 20"
Y-axis travel : 14.1"
Z-axis travel : 18.1"
Table
Working surface: 14.9" - 24.9"
Max load on table : 880 lbs
T slot : 11/16" X 3 X 5
Motors:
Spindle drive motor: AC10hp (30 min rating)
Feed motors:
X/axis : AC 1.75 hp (at 1500-1)
Y/axis : AC 1.75 hp (at 1500-1)
Z/axis : AC 3.9 hp (at 1500-1)
Coolant Pump Motor: 0.54 hp
Lubrication pump motor : 0.027 hp
